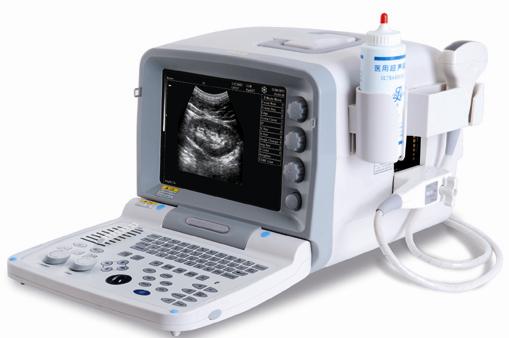

You are here: Home> Products> Portable Ultrasound
Brief Description
●  Wide application: Abdomen, Gynecologic and Obstetric, Urology, Cardiology ,Small parts,etc.
●  Powerful measurement & calculation software packages
●  8-Segment TGC adjustment
●  Elements:80 elements
●  10.4 ″high resolution monitor
●  2 probe connectors
●  Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.
●  Extensive Software Packages
●  Probe automatic identification
●  2 USB PORT
Main Technical Parameters
Scanning mode:B、2B、4B 、B/M、M
Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s
Magnification:×0.8, ×1.0, ×1.2, ×1.5, ×1.6,× 2.0, ×2.4 , 3.0
Probe mode:electric convex / electric linear
Channels:≥16 channels digital beaming composite
Resolution: horizontal≤2mm,Vertical≤1mm
Dead Zone≤5mm
The Max Explore Depth:≥170mm
The Max Display Depth:236mm
Total field of view for Depth Adjusting : 10 level
Gain:0~127dB
Dynamic scope:27~90dB,visible & adjustable
Four different angles / switchable width
Gray scale: 256
Imaging technique:full digital beam-composite, continuous dynamic focusing, dynamic aperture
Image processing:pre-process (continuous dynamic focus, dynamic aperture, dynamic filter), post-process(4 grades gamma correction)、frame correlation, black/white reversal, left/right reversal, up/down reversal, edge enhancement, etc.
Image storage: 100 frames permanent storage ,not lost the picture if cut off the Electricity
256 frames cine loop
TGC control, far field / near field
Depth hoist / local zooming
Frame frequency:30 frames/s
Report:All types report
Note: name, age, gender, hospital name, time, date, probe mode, frequency, focus, frame correlation, gain, contract, etc.
Standard Lanuage : Chinese &English (French ,Russian & Spanish can be used as customer request)
Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.
High Speed USB-A Socket + U disc
High Speed USB-B Socket + Real Time Picture
Output: PAL / NTSC
Color SVGA Output
Measurement
Measurement: distance, circumference, area, volume, heart rate, GA, fetus weight, EDD, etc.
Cardiac:depth、Gradient、Heart 、Cycle etc.
Obstetrics : (BPD)、(CRL)、(GS) 、(FL)、(HL)、(TAD) 、(TBD)、 (APBD)、(HC)、(AC)、(GA)、(EFW)、(FT)、(LV)、(THD) 、(TCD)、(OFD)、(AFI)、(LMP)
Gynaecology:UT-V、Endo、OV-V、FO-D、CX-L
Urinary:RUV、PV
Kidney:CSA,Kidney-V
IP Accounting :Column Diagram、Sectional View
Standard configuration
Main unit                                             1 PC
3.5MHz convex probe                       1 PC
Two probe connectors
Pseudo color
Options
Probe:
           5.0 MHz micro-convex probe for pediatric
           6.5 MHz intra-vaginal convex probe
           7.5 MHz high frequency linear probe
Trolley
Standard Thermal Printer:
           HP Color Laser Jet CP1515N
           HP Color Laser Jet CP1525N
USB data line & software
