● Wide application: abdomen, OB/GYN, urology, cardiology etc
● Powerful measurement & calculation software packages
● 8-Segment TGC adjustment

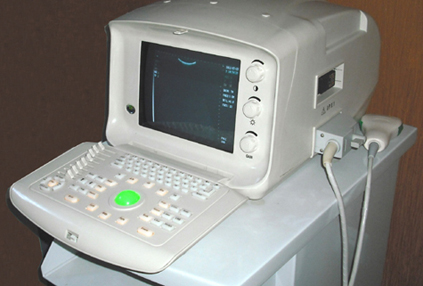

● 10 inch VGA monitor
● OB measurements: BPD, GS, CRL, FL, AC, HC, etc
● Permanent function of image store: 32 images

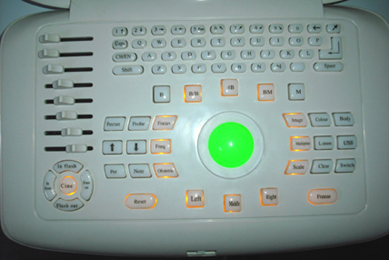

● Back-lit keyboard
● 2 probe connectors
● Probe automatic identification
● Report of average EDD,GA.FW can be generated automatically
Main Technical Parameters
Scanning mode: Convex/Linear/Trans-vaginal

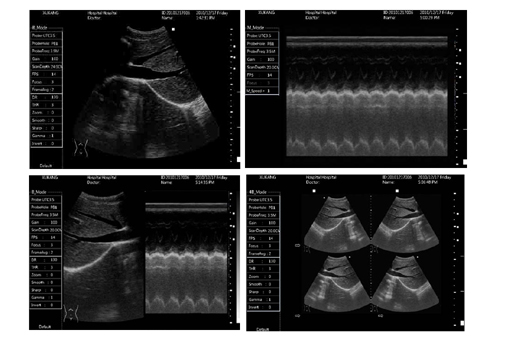

Display modes: B, B+B, B+M, M, 4B
Scanning depth: 240mm
Gray scales: 256
Body marks: 44
Image conversion: up/down, left/right, black/white
Function of puncture guide
Per: 4-stage per function
Printer function: can connect laser printer and Video printer directly
Comment: Date, Name, Sex, Age, Hospital, Annotation
Zooming: *0.8, *1.0, *1.2, *1.5, *2.0

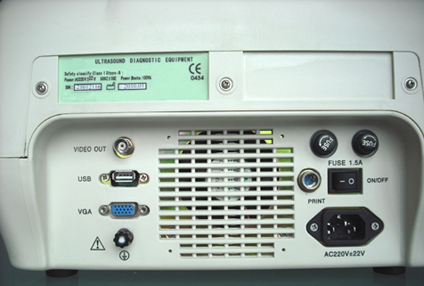

Port: USB 2.0, VGA, Video connector
USB Function of image store: more than Sixteen thousand images
Power supply: AC 110V-240V, 50HZ/60HZ
Probe connector: 2
