Brief Description
●   Wide application: abdomen, OB/GYN, urology, cardiology etc
●   Powerful measurement & calculation software packages

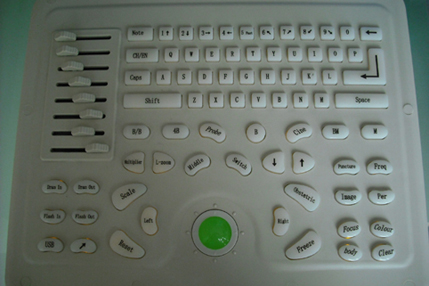

●   8-Segment TGC adjustment

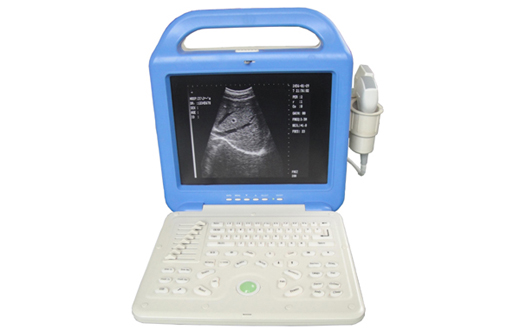

●   12″high resolution monitor
●   OB measurements: BPD、GS、CRL、FL、AC、HC、Fetal weight、EDD and amniotic,fluid etc.
        Heart rate and slope can be measured under B mode Permanent function of image store: 32
        images, 256-frame cine loop Back-lit keyboard
●   2 probe connectors
●   Probe automatic identification
●   Report of average EDD,GA.FW can be generated automatically
Main Technical Parameters
Scanning mode: Convex/Linear/Trans-vaginal

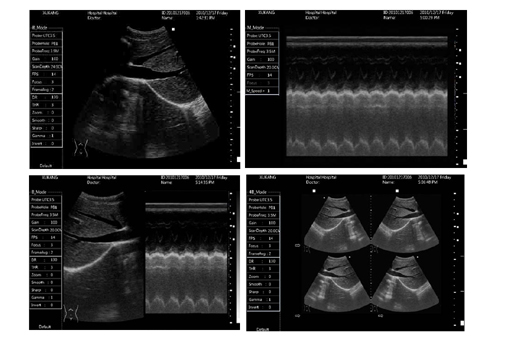

Display modes: B, B+B, B+M, M, 4B
Scanning depth: 240mm
Gray scales: 256
Body marks: 33
Image conversion: up/down, left/right, black/white
Function of puncture guide
Per: 4-stage per function
Printer function: can connect laser printer and Video printer directly
Comment: Date, Name, Sex, Age, Hospital, Annotation
Zooming: *0.8, *1.0, *1.2, *1.5, *2.0

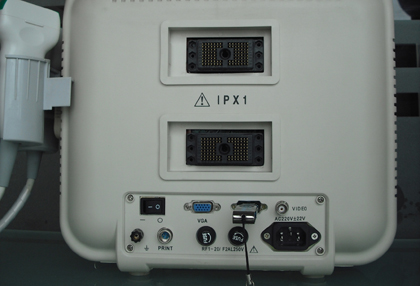

Port: USB 2.0, VGA, Video connector
USB Function of image store: more than Sixteen thousand images
Power supply: AC 110V-240V, 50HZ/60HZ
Probe connector: 2
General menu: Distance, Area, Volume, Angle, Ellipse
Obstetrics menu: BPD、GS、CRL、FL、AC、HC、Fetal weight、EDD and amniotic,fluid etc. Heart rate and slope can be measured under B mode
Heart menu: Distance, Time, Slope, Rhythm
Standard configuration
Main unit

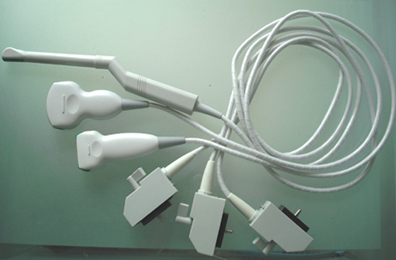

60R/3.5MHZ Convex array probe
USB 2.0, VGA port, printer connector
Video connector
L40/7.5MHZ Linear array probe
20R/5.0MHZ Micro-Convex array probe
13R/6.5MHZ Trans-vaginal array probe
Video Printer
