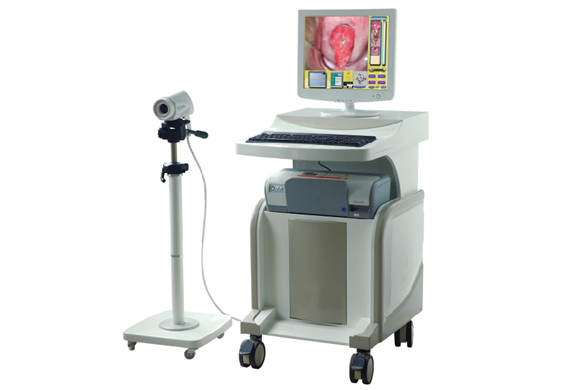

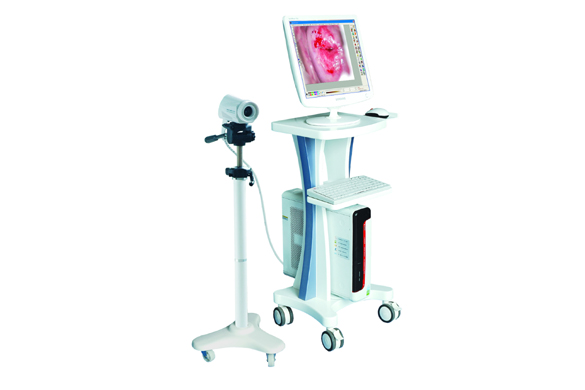

Brief Description
• Fashionable appearance, convenient design
• Adopt the color digital CCD camera with high resolution and clarity.

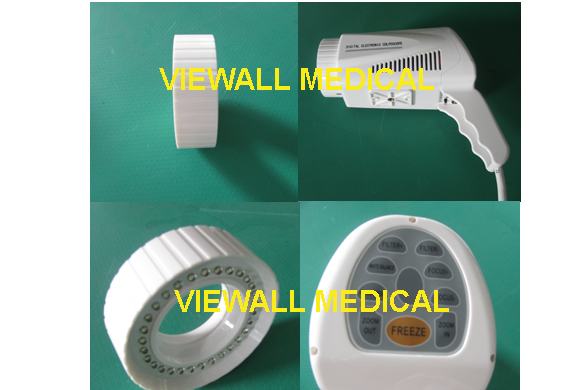

• Dismountable light source, which has got the patent.
• Bulbs adopt supper cold LED light source whose diameter is only 2 mm.
• There are “freeze, filter, zoom in, zoom out, white balance” buttons on the top of the camera
   for the speedy automatic functions.
• Professional green-filter techniques
• Image freeze
• White balance
• Auto focus
• Timing of acetic acid and iodine reaction tests
• Powerful image software and workstation system


• Capacities of collecting static images continuously; the number of images for dynamic browse
   could reach to as much as 99.
• Capacities of continuous cine loop and record of dynamic images in 6 different sampling-frequencies.
• Capacities of comparisons for 4 pictures in same screen, which will be executed by multi-orientations
   multi-angles and dynamic consultations
• Functions of copy, freeze, and others.
• Hundreds of cases pictures could be supplied for analyzing and referencing; new cases pictures
  could be added and compared with current pictures at any time.
• Abundant diagnosis information supplied, which is much useful for preventing the afflictions of
   inputting characters
• Capacities of creating web reports and transmitting the reports and images via internet or local
   area network (LAN), recurring to which the effects of resource sharing and long-distance consultation
   could be achieved.
• Multi-formats of colorful image info reports, database could be edited freely to create the user-templates
• Tens of image enhance functions to improve the checking rate of micro-focus
• Sole Filter function which will ensure doctors to see the veins clearly with less loss of light.
• Full-icon operation system, which is very easy to operate.

Main Technical Parameters
Image Sensor
1/4” Sony CCD Image Sensor
Green, Black/White,
Imaging Mode
Image Freezing Control
Finger Control; Footswitch Control ,Camera control
Minimum Illumination
Signal-to-Noise (SNR)
Electronic shutter
1/10,000 Sed
Light Source
Multi-point surrounded high-brightness white cold light source
Back-lighted Compensation
Focus Area
Optical Varifocal :22 times
Digital Varifocal: 8times
Dynamic Timing Control
Real-time display of acetic acid and iodine reaction tests
Operation System:
• Windows 2000
• Windows XP-SP2
• Windows VISTA
Standard Configuration:
• Image capture system
• Image control system
• Bracket
• Footswitch
• Two light sources
• Packing case
• Machine: PC or Laptop
• Monitor: LCD or CRT
• Printer

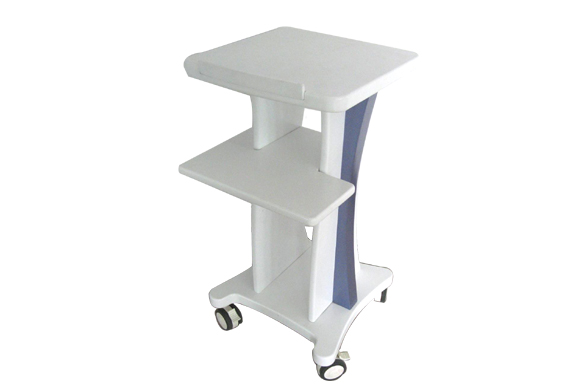

• Trolley: foldable
